LGS wall frame system
Prefabricated light gauge steel wall frames, roll-formed from cold-formed galvanised steel to your approved shop drawings.
- Engineered to project
- Not verified
Detailed and quoted from your drawings and engineering.
Add it to your project list, then attach your drawings when you request a quote.
Not verified
Technical information on this page has not yet been verified for publication. Confirm against project requirements. How we publish technical information
Overview

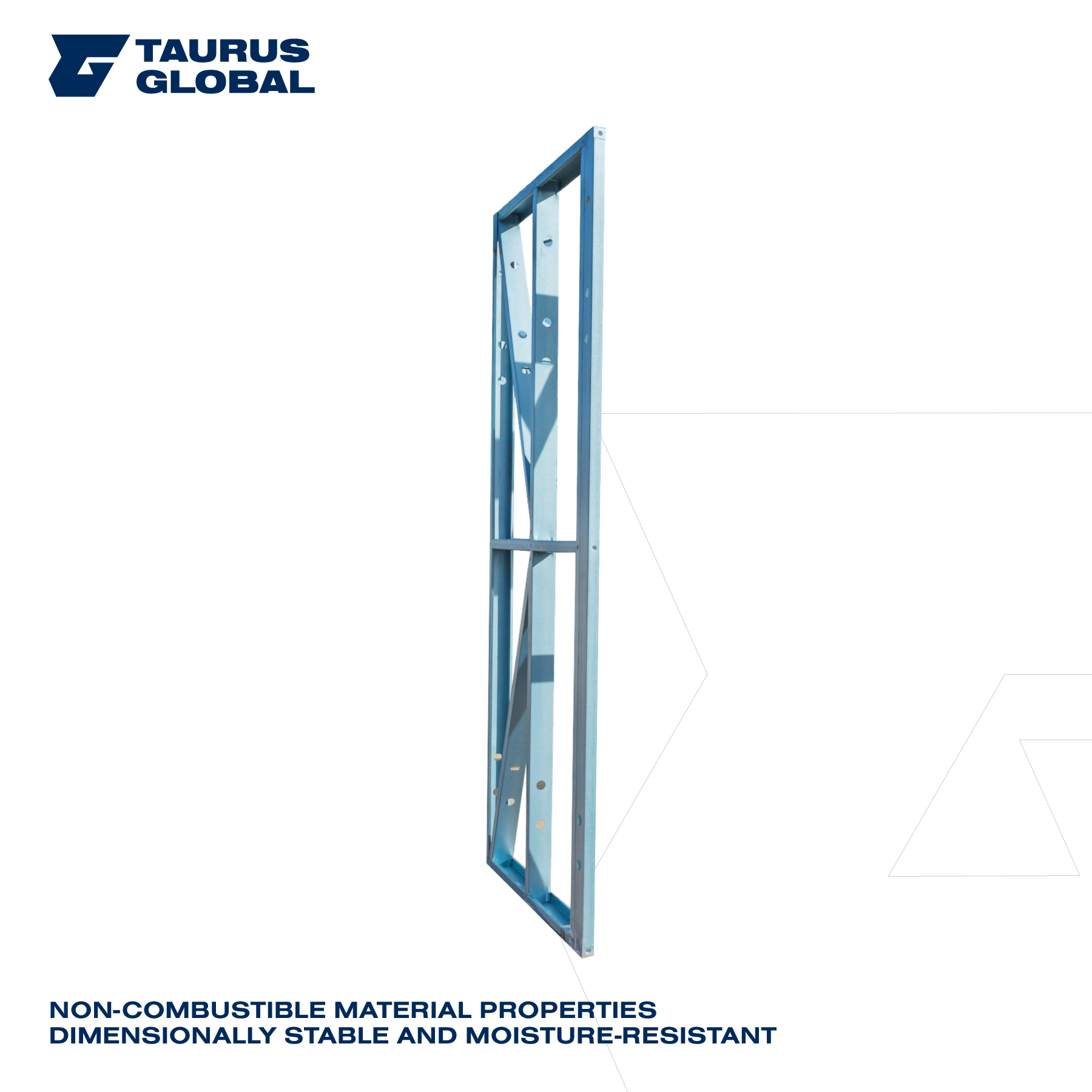

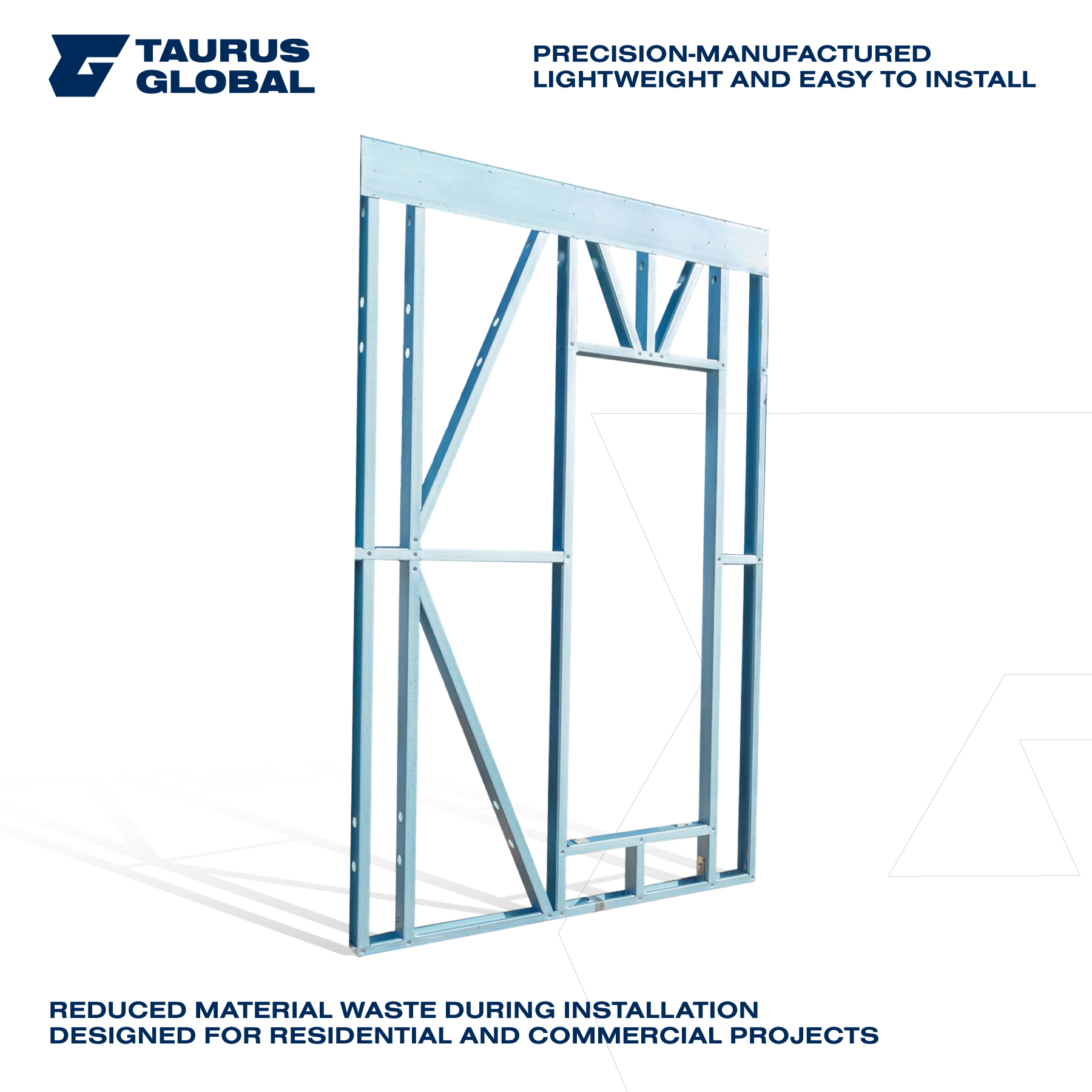

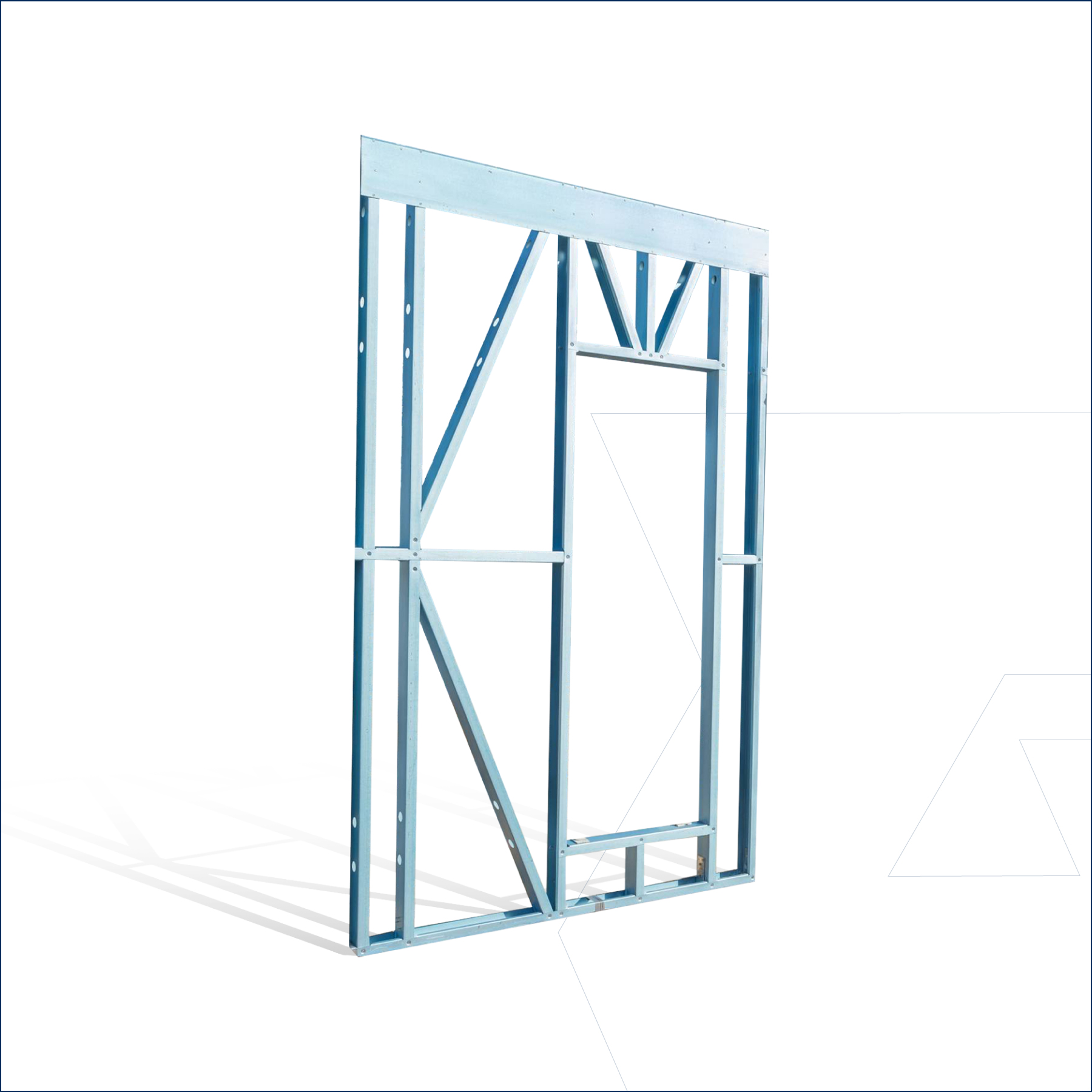

Light gauge steel (LGS) wall frames are a precision-manufactured alternative to timber framing for residential, multi-dwelling, commercial and modular projects. Frames are roll-formed from cold-formed galvanised steel to approved shop drawings and supplied as labelled panels.
Steel framing does not shrink or warp with moisture changes in the way timber can, which helps keep walls straight and openings true. Frames can be detailed for load-bearing and non-load-bearing walls to the project engineer's design.
Features
- Roll-formed to approved shop drawings
- Labelled panels for sequenced installation
- Load-bearing and non-load-bearing walls
- Steel is not a food source for termites
- Dimensionally stable with moisture changes
- Lighter panels for transport and handling
Features describe the product type. Performance for your project is confirmed in the quotation and supporting documents.
Included when quoted
- Wall frame panels
- Shop drawings to the approved detail scope
Not included unless listed
- Structural design certification unless contracted
- Installation unless quoted
- Fixings to slab unless listed
Technical summary
- Material / system
- Cold-formed galvanised steel
- Construction types
- Residential, Multi-dwelling, Commercial, Modular and prefabricated
- Options
- Detailing by Taurus LGS, Pre-punched service holes, Bracing to engineer's design
- Interfaces
- Slab and footing connections, roof trusses or floor systems above, window and door openings, and services penetrations are detailed per project.

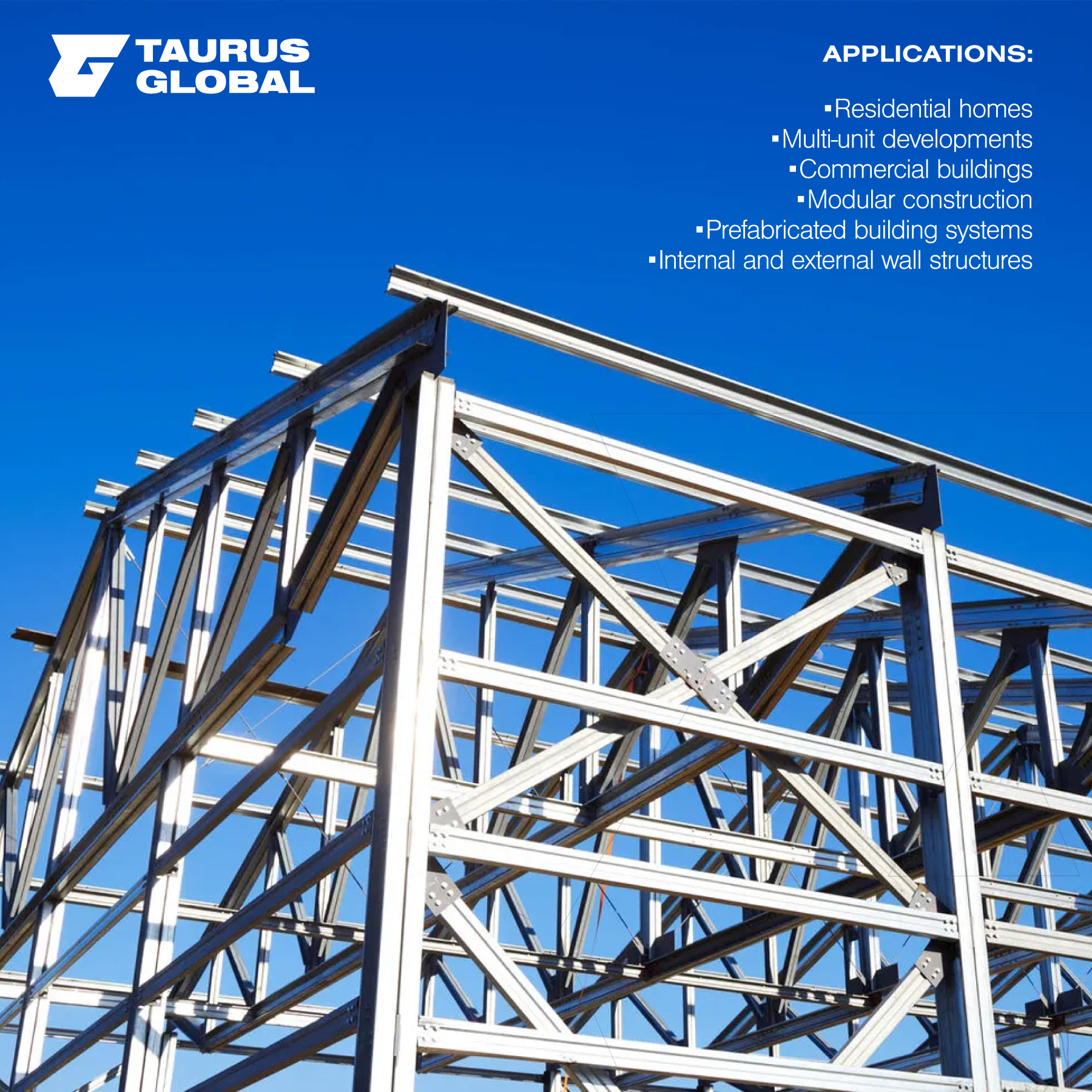

- Applications
- Residential homes, Townhouses and multi-unit developments, Commercial buildings, Modular construction, Internal and external walls
- Evidence status
- Not verified
